Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect

  • 1
  • 2

Brand Name : kacise

Model Number : KAN310

Certification : CE

Place of Origin : CHINA

MOQ : 0-100

Price : $0-$500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100

Delivery Time : 3-10days

Packaging Details : Common package or custom package

Range : 0 ~ 10.00 mg/L (0 ~ 100.00 mg/L)

Resolution : 0.01 mg/L

Precision : ± 10% or ± 1mg/L

Operating Temperature : 0 ~ 40 °C

Working Pressure : < 0.1 mpa

The Ph Range Of The Medium : 4 ~ 10ph

Contact Now

Online Ammonia Nitrogen Sensor RS485 Modbus PLC DCS

1.Application Environment

KAN310 integrated on-line ammonia-nitrogen sensor is made of ammonium ion selective electrode based on PVC membrane, which is used to measure the content of ammonium ion in water with temperature compensation.

2.Feature

  • Signal Output: RS-485 bus, Modbus/RTU protocol,
  • Convenient to connect to PLC, DCS, Industrial Control Computer, General Controller, paperless recording instrument or touch screen and other third-party equipment.
  • The patented ammonium ion probe, with an internal reference fluid at a pressure of at least 100 kpa (1 bar), oozes extremely slowly from the microporous salt bridge. Such a reference system is very stable and the electrode life is longer than ordinary industrial electrode life.
  • Easy to install: submerged installation.
  • Ip68, containment level.

3.Technical Specifications

Model Number KAN310
Range 0 ~ 10.00 mg/L (0 ~ 100.00 mg/L)
Resolution 0.01 MGL
Precision ± 10% or ± 1MG/L
Operating Temperature 0 ~ 40 °C
Working Pressure < 0.1 mpa
The Ph Range Of The Medium 4 ~ 10ph
Temperature Compensation Automatic temperature compensation (PT1000)
Power Supply 12 ~ 24 VDC ± 10%
Signal Output RS-485 bus, Modbus/RTU protocol
Contact Material PVC and POM
Installation Mode Immersion mounting
Cable Length 5 meters, other length can be customized
Calibration Mode Two-point calibration
Power Consumption < 0.05 W
Protection Level IP68

4.Dimensional Drawing

Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect

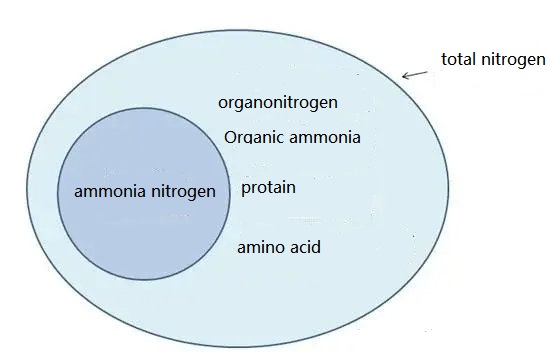

Tip:The difference between total nitrogen and ammonia nitrogen

Total nitrogen includes organic nitrogen, organic amines, amino acids, proteins, ammonia nitrogen, etc.

And ammonia nitrogen only includes NH4+ and NH3.

Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect
