Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Product Categories
Xi'an Kacise Optronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Brand Name : KACISE

Model Number : KUM-C

Place of Origin : China (Mainland)

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter

Delivery Time : 5 working days

Packaging Details : Carton or customers requests available

Certification : CE

Measurement Accuracy : 0.5%~1%

Measurement range : 5m、10m

Resolution : 3mm or 0.1%（The larger one is effective）

display : English LCD

Analog output : 2 wires 4～20mA

Power supply : 24VDC

Contact Now

4～20mA Intelligent Ultrasonic Level Meter 5-10m Ultrasonic Liquid Level Sensor
Product Description

KUM-C ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy toinstall and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.

Debugging

Due to the different installation environment of instrument, so before ultrasonic level meter works we must know the basic situation of the required, such as measurement range, zero level, full scale and application field.

Features

1. easy to install and maintain.

2. big range and small blind area.

3. high accuracy

4. English and Chinese Language Display

5. Non-contact measurment

6. Support remote monitoring

Parameters

Function Integral type
Measurement range 5m,10m
Measurement accuracy 0.5%~1%
resolution 3mm or 0.1%(The larger one is effective)
display English LCD
Analog output 2 wires 4～20mA
Power supply 24VDC

Environment temperature

Display instrument-20～+60℃,

transducer-20～+80℃
Protection grade Display instrument IP65,transducer IP68
transducer cable no
Transducer installation According to the range and transducer select

Probe type

There are 6 type probes now and also there are 3 types under development.

Type1:PVDF Type2:aluminium alloy

Type3:ABS

Type4: stainless steel 316 Type5: Teflon Type6:titanium alloy

We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.

Note: This series of ultrasonic level meter can be customized according to customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.

Installation dimensions

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Application

1) Distance measurement

2) Depth mesurement

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

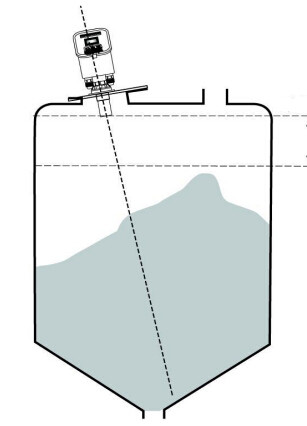

Solid measurement

Installation flange

The installation method is the same as liquid measurement. It can install on the flange which joint the connected tube of container. The axis must aim to container outlet or perpendicular to the media surface, the probe should be able to come out of the connected-tube.

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Opening container

As opening container, we can use the bracket to install (pay attention to the bracket’s bearing capacity), and maintain some distance between sensor and container wall. If the container wall is flat, then the distance from sensor to the container wall is in the following table:

Max range Distance Max range Distance Max range Distance
5m 0.5m 10m 1m 15m 1.5m
Max range Distance Max range Distance Max range Distance
20m 2m 30m 3m 40m 4m

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Due to open containers have no focus effect, you can install the sensor in the middle of the container.

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Production Flow

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Packaging & Shipping

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Shipping & Payment

Payment terms:

1. Samples: TT, 100% payment in advance.

2. Bulk order: TT, 30% deposit and balance 70% settled before shipment.

3. Western Union

4. L/C is available.

Trade term: FOB, CIF & EXW are available

Packaging:

Base on incasement request for the products or as customer's special requirements.

Time:

1. Samples: 2-7 working days after payment.

2. Bulk order: 20-35 working days after payment.

Methods:

1. By Express: DHL, UPS, FEDEX, EMS, a fast and safe way for shipping.

2. By Air: In some area, the shipping cost by air is more favorable than by Express.

3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.

4. Your shipping agent or forwarder.

Ordering information

Type-range –relay out-Power module –communication port-cable length-probe type
